K1 Square Beam distribution – Anti-panic C0:630 C90:A630
K1 Elongated Distribution – Escape Route C0:D800 C90:A25

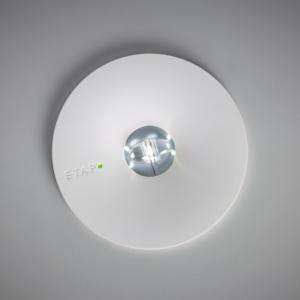

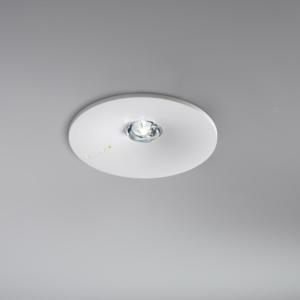

ETAP’S K1 recessed emergency lighting range are small and sleek in nature that the size is determined by the emergency gear needed to fit into the plaster ceiling. Its beautifully curved emergency flange hold the emergency optics and the testing indicators, available in a robust polycarbonate matte-white. This is suitable for environments that have IK04 and IP42 requirements.
Optics:
ETAP offer 2 optics for optimal performance: the anti-panic lens distributes light in a square area for even illumination including corners and the escape-route lens provides an elongated beam for passages and corridors. The escape-route lens will give a 19.2m beam (based on 2.7m ASNZ2293 tables, see below) allowing designers to use less fittings, subject to ASNZ2293-18 guidelines. ETAP’s emergency optics allow these emergencies to be mounted on high ceiling without suspending the products. Please see our Australian and New Zealand spacing guide below under ‘Downloads’ section.
ETAP Lighting K1 recessed Lens Distribution in comparison to other products in Australia.
To learn more about ETAP Lighting lenses and how their products are different and more advanced click here.
Testing:
Like all of ETAP Lighting’s Exit and Emergencies EST+ comprehensive stand alone self-test is supplied as standard. ESM monitored systems is available when needed. Both ‘EST+’ and ‘ESM’ offer full testing including diode function, wiring function, battery function every 2 weeks. Every 90 days the system will operate a battery health test, draining the battery to 90 minutes and recharging. Both systems do not require manual intervention, the systems will test to ASNZ2293 and maintain the system to standard. If any faults occur, the product will send a signal to the indicator offering a different sequence to advise what the fault is, whether it is the diode, wiring or battery fault or health. In ESM monitored system, the fault will report back to the web controller, ESM will send an alert to Maintenance with the building, with a report where the product is located and what the fault is. This advise will continue until the product is rectified. ETAP Lighting offer central battery systems and wireless monitored ‘ESM’ products. ETAP Lighting’s monitored system ‘ESM’ CAN monitor any other branded emergency lighting product via a Dali Gateway. Please see EST and ESM brochures offered under ‘Downloads’ section.
Batteries:
All ETAP Exits and Emergencies come with NiMH (Nickel-Metal Hydride) batteries as standard. When cadmium-based batteries were banned, ETAP switched to NiMH on their entire emergency and exit lighting range. Not only are they cadmium-free, they also consume less energy and are 50% more compact. Lithium has been proven to be unstable in heat, flammable and harder to recycle at the end of the battery life cycle with only 10% at this stage being able to be recycled from the LI batteries. Many of the harmful chemicals within Li Batteries get sent off-sure to dispose off, becoming harmful toxic waste and potential fire risks. NIMH battery are less harmful to the environment and are able to be recycled up to 95% at the end of their operating life. We maintain maximum battery life by including battery health functions every 90 days in all ETAP testing systems, this provides less than 5% failure over a 10 year period.
Warranties:
ETAP Lighting offer 4 year factory warranties on their products. Their is no fine print that excludes batteries or PCB components. ETAP Lighting continue to lead the way with all of their product to produce high performing luminaires that last, by incorporating in luminaire design the components ideal performance and health conditions. ETAP Lighting’s comprehensive testing that includes battery health cycles every 90 days, to ensure the life of the battery and compliance of the product. EST+ and ESM testing system also include diode health and wiring function. It is with this technology that ETAP Lighting Exit and Emergency systems see less than 5% failure over a 10 year period.
Compliance:
The K1 Emergency Range is tested and compliant to ASNZ2293:1:2018 certificate #ETAP2020K1AP, ETAP2020K1ER.
How to specify – Codes and Data sheets
K1R213/3-A-D800A25 Escape Route Lens C0:D800 C90:A25 (19.2m 2.7M ceiliing height) ‘ESM’ monitored Wired/Wireless on request – Data sheet: K1R213_3-A-D800A25
K1R212/3-A-D800A25 Escape Route Lens C0:D800 C90:A25 (19.2m 2.7M ceiliing height) ‘EST+’ comprehensive self test – Data sheet: K1R212_3-A-D800A25
K1R223/3-A-A630A630 Anti-panic Lens C0:C90 A630:A630 ESM monitored wired/wireless on request – Data sheet: K1R223_3-A-A630A630
K1R222/3-A-A630A630 Anti-panic Lens C0:C90 A630:A630 EST+ comprehensive self-test – Data sheet: K1R222_3-A-A630A630
Contact Bluelab for support in specifying K1
Downloads:
ETAP K1 Emergency range Australian Spacing table to ASNZ2293.12018
For ETAP's full ASNZ2293 K1 range click here
